Product family code BWC110 [BWC110]
Number of lamps 1 [1 pc]
Lamp type LED9 [LED module 900 lm]
Lamp color 830 [830 warm white]
Light source replaceable Yes [Yes]
Transformer PSU [Power supply unit]
Driver included Yes [Yes]
Safety class II [Safety class II]
Protection degree (IP) IP54 [Dust accumulation-protected, splash-proof]
IK code IK08 [5 J vandal-protected]
Color WH [White]
Dimmable No [No]
Photocell No [-]
Connection SI [Screw terminal block]
Glow wire test 650/5 [Temperature 650 °C, duration 5 s]
Constant light output No [No]
Electrical characteristics
Mains voltage 220-240 V [220 to 240 V]
Mains frequency 50-60 Hz [50 to 60 Hz]
Housing material
ASA [Acrylonitile-styrene-acrylate]
Reflector material PC [Polycarbonate]
Material light cover/lens PC [Polycarbonate]
Initial performance. (IEC compliant)
System power 9 W [9 W]
Initial luminous flux 668 Lm
Initial efficacy LED luminaire 72 Lm/W
Lamp color temperature 3000 [3000 K]
Init. Color Rendering Index >80 [>80]
About time perform. (IEC compliant)
Lifespan L80B10 60000 hr
Application conditions
Ambient temperature -20 to +35°C [-20 to +35 °C]
Product data
Order code 851899 99
EOC product code 871829185189999

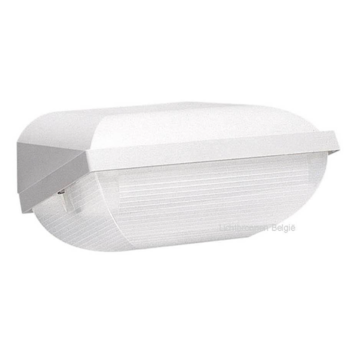

Product name BWC110 LED9-/830 PSU II WH
Order product name BWC110 LED9-/830 PSU II WH
Quantity per pack 1
Packings per outer box 4
Barcode on product 8718291851899
Barcode on outer box 8718291851974
Logistic code(s) 910500454097
Net weight per piece 0.850 kg
