LED replacement OSRAM DULUX D 26W / 830 and Philips PL-C 26W / 830 / 2p
For luminaires in which the DULUX D lamps are placed horizontally !

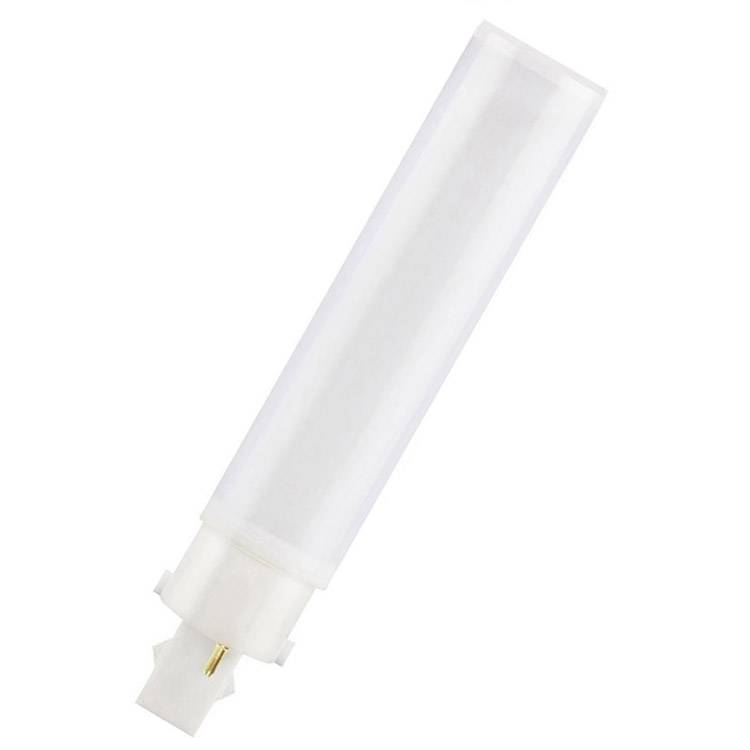

The Osram LED DULUX D 10W 830 2P G24d-3 (2pin- replaces 18W) lamps are easy to install and do not require any building or modification work as they use a similar PLC form factor.
Osram LED DULUX D 10W 830 2P G24d-3 (2pin- replaces 18W) lamps are up to 60% more efficient than PLC lamps, saving energy costs by reusing existing luminaire.
The range is designed to fit neatly into existing fixtures. The 2-pin lamps are compatible with all Electromagnetic ballasts, while the 4-pin lamps work with high-frequency ballasts.
A simple retrofit solution for DULUX D
Electrotechnical data
Nominal power 10.00 W
Nominal power 10.00 W
Nominal voltage 220… 240 V.
Operating frequency 50… 60 Hz
Power factor λ> 0.90
Photometric data
Nominal luminous flux 920 lm
Luminous flux 920 lm
Rated color temperature 3000 K.
Color rendering index Ra> 83
Luminous flux at end of nominal life [calc.] 0.70
Light color Warm White
Standard deviation of color proofs ≤6 sdcm
Light technical data
Warm-up time (60%) <0.50 s
Start-up time <0.5 s
Dimensions
Total length 170.5 mm
Diameter 34.5 mm
Outer bulb -
Length 170.5 mm
Lifespan
Nominal lamp life time 30000 h
Average lamp life time 30000 h
Number of switching cycles 200000
Luminous flux at end of life 0.70
Additional product data
Lamp base G24d-3
Mercury content 0.0 mg
Mercury free Yes
Form / version Mat
Proper disposal according to legislation Yes
Power
Dimmable No.
Certificates & standards
Energy efficiency class A +
Energy consumption 11 kWh / 1000h
Country-specific formats
Order reference DULUX D LED 10W
