General information
|
Lamp base |
G24D-1 [G24d-1] |
|
Nominal life (nom.) |
30000 h |
|
Switching cycle |
50,000X |
|
B50L70 |
30000 h |
Requirements for luminaire design
|
Color code |
830 [CCT or 3000K] |
|
Luminous flux (nom.) |
475 lm |
|
Luminous flux (specified) (nom.) |
475 lm |
|
Correlated color temperature (nom.) |
3000 K |
|
Color consistency |
<6 |
|
Color rendering index (nom.) |
83 |
|
Llmf at end of rated life (nom.) |
70% |
Operating and electrical data
|
Input frequency |
50 to 60 Hz |
|
Power (Rated) (Nom) |
4.5 W |
|
Lamp current (max.) |
25 mA |
|
Lamp current (min.) |
20 mA |
|
Start-up time (nom.) |
0.5 s |
|
Warm up time up to 60% light output (nom.) |
0.5 s |
|
Power Factor (nom.) |
0.9 |
|
Voltage (nom.) |
220-240 V |
Temperature
|
T environment (max.) |
35 ° C |
|
T environment (min.) |
-20 ° C |
|
T storage (max.) |
65 ° C |
|
T storage (min.) |
-40 ° C |
|
T-housing maximum (nom.) |
60 ° C |
Control systems and dimmers
|
Dimmable |
No |
Mechanical properties and Housing
|
Product length |
100 mm |
Approval and Application
|
Energy-saving product |
Yes |
|
Energy efficiency label (EEL) |
A ++ |
|
Approval marks |
CE marking RoHS compliance KEMA Approval certificate |
|
Energy consumption kWh / 1000 hours |
5 kWh |
Product data
|
Full product code |
871869670659600 |
|
Product name for order |

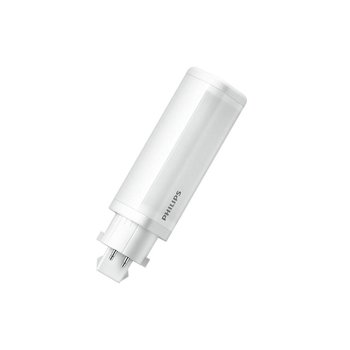

CorePro LED PLC 4.5W 830 2P G24d-1 |
|
EAN / UPC - Product |
8718696706596 |
|
Order code |
70659600 |
|
Local Code |
CPLC8302PG24D1 |
|
Numerator - Number per pack |
1 |
|
Numerator - Boxes per outer box |
10 |
|
Material no. (12NC) |
929001350702 |
|
Net weight (per piece) |
0.070 kg |
