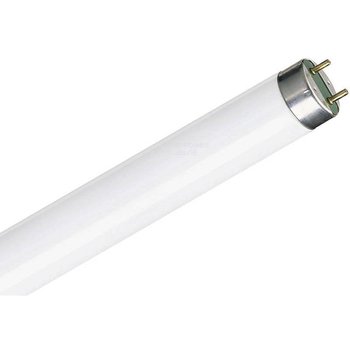

Widely used and most famous 26 mm fluorescent tube with excellent light quality. Stable light level up to 90% of the lifespan (average 6 years or more during office hours)
The lifespan of the PHILIPS MASTER TL-D super 80 is 1.5x longer than the standard color TL-D and the light output is 30% higher with the same energy (67 Lm/Watt). During this time, the light intensity remains higher than the standard. Fluorescent lamp. The Philips TL-D has a 50% failure rate after 20,000 hours on HF ballast (12,000 hours with standard ballast). This PHILIPS TL-D lamp with G13 lamp base is dimmable with a suitable ballast. Lamp shape T8
Available in the light colours:
827 (Extra warm white), 830 (Warm white), 840 (bright white) and 865 (daylight)
Defective PHILIPS MASTER TL-D super 80 lamp is easy to recognize by the black penetration in the lamp at the end on one side! If this is the case on both sides, the ballast is often broken. Usually the lamp slowly starts to give less light from 10,000 to 12,000 hours. It may be wise to replace it in a timely manner due to the risk of the electronic ballast becoming defective. Due to wear and tear of the lamp, it will consume more power, which will burden the ballast.
Lamp base information PHILIPS MASTER TL-D super 80
 |
 |
 |
| lamp base G13 | T8 lamp with G13 lamp base | lamp holder G13 |
You can replace the PHILIPS MASTER TL-D super 80 with 2 pins on each side by turning it out of the fitting with a gentle rotation of 90 degrees to the left or right. De-energizing the fixture is necessary for the lamp to burn, but it is also safer.
Environmental aspects of the PHILIPS MASTER TL-D super 80 lamp.
All TL-D lamps fall under Energy efficiency label (EEL) A or B. The mercury content of the PHILIPS MASTER TL-D super 80 lamps is only 2 mg. Below are the various TLD lamps and their energy label.
Application PHILIPS MASTER TL-D super 80
-Suitable for various 'TL"-D fixtures. This lamp is often used in schools, offices, shops, factory halls, etc.
Advantages of PHILIPS MASTER TL-D super 80
Covered with special fluorescent layer for better color rendering (Ra>80)
- 1.5 times longer lifespan than the standard color TL-D lamps
- Higher efficiency with HF control gear
- 30% more light for the same amount of energy than standard TLD lamps
- Creates a color climate ranging from warm white to cool daylight
| Official name: | |
| Lamp Type: | |
| Lighting Type: | - |
| Energy Efficiency Label (EEL): | A |
| Wattage (W): | |
| Length: | - |
| Diameter: | - |
| Beam (degrees): | - |
| According power: | - |
| Life (hours): | - |
| Dimmable: | - |
| Light color: | |
| Color rendering (Ra): | - |
| Luminous flux (lumens): | |
| Lm / W: | |
| Lamp Current (mA): | - |
| EM Luminance (cd / cm2): | - |
| Brightness (Candela): | - |
| Bulb: | - |
| Fitting: | - |
| Product Barcode (EAN): | |
| Barcode outside box: | |
| EOC code: | |
| Weight (gr): | |
| Packing outer box (number): | - |
| Design temperature (C): | - |
| Mercury (Hg): | - |
| Splinter free (HACCP): | no |
| AC input voltage (V): |
