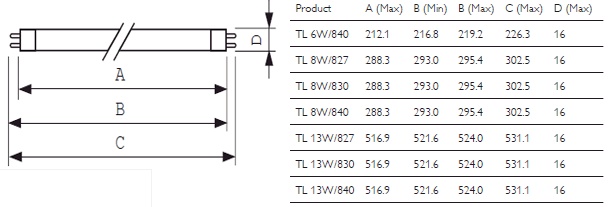

• Dimensions in mm.
Lamp length without pins 212.1 (max) mm
Insertion depth B 216.8 (min), 219.2 (max) mm
Total length C 226.3 (max) mm
Bulb diameter D 16 (max) mm
• Product data
Order code 893420 27
EOC product code 871150089342027

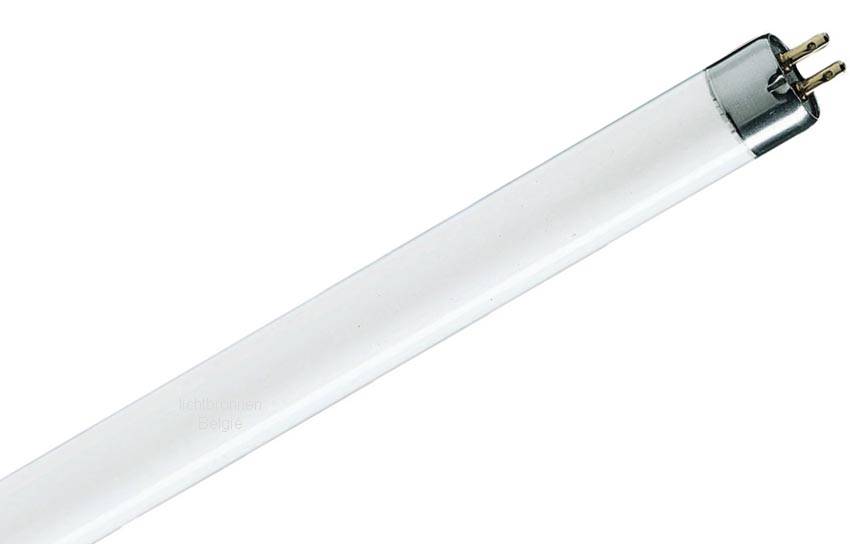

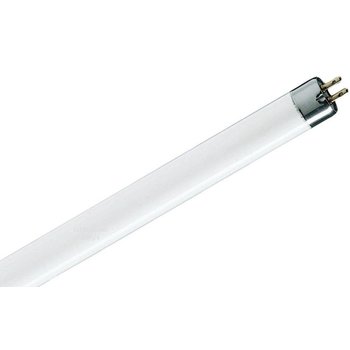

Product name MASTER TL Mini Super 80 6W/840 1FM
Order product name MST TL Mini 6W/840 1FM/10X25CC
Quantity per package 1
Pack quantity 10X25CC
Barcode on product 8711500893420
Barcode on intermediate packaging - EAN2 8711500893437
Barcode on outer box 8711500893444
Logistic code(s) 928000584050
ILCOS code FD-6/40/1B-E-G5
Net weight per piece 19,280 gr
• General characteristics
Lamp base G5
Lamp shape T5 [16mm]
Lifetime to 50% failure conv 10000 hr
Lifetime 50% ballast failure 10000 hr
Lifetime 50% failure HFB 7000 hr
live. 10% excl. cold EL,3h 3000 hr
live. 10% excl. warm EL,3h 5000 hr
Lifetime to 10% failure EM 5000 hr
• Technical Light Properties
Color code 840 [CCT or 4000K]
Color rendering 85 Ra8
Light color Cool White
Color temperature 4000 K
Chromaticity coordinate X 381 -
Chromaticity coordinate Y 379 -
Luminous flux lamp EM 320 Lm
Specific luminous flux lamp 53 Lm/W
Lumen maintenance 2000hrs 85 %
Lumen Maintenance 5000hrs 77 %
Lumen Maintenance 10000hrs 71 %
Average luminance EM 0.85 cd/cm2
• Electrical characteristics
Nominal lamp power 6 W
Lamp power with conv ballast 6.0 W
Lamp voltage 42 V
Lamp current with conv ballast 0.160 A
Dimmable/Adjustable Yes
