General characteristics
Lifetime up to 50% failure conv 15000 hr
Technical Light Properties
Color code 180
Light color Blue
Luminous flux EM 25 °C, according to specs 960 Lm
Luminous flux EM 25 °C, nominal 960 Lm
Lm-beh.fact EM 2kh acc. specs 85%
Design temperature 25 C
Chromaticity coordinate X 157 -
Chromaticity coordinate Y 75 -
Electrical characteristics
Nominal lamp power 36 W
Lamp power EM 25 °C, nominal 36 W
Lamp power EM 25 °C, according to specs 36.0 W
Lamp voltage EM 25 °C 103 V
Lamp current EM 25 °C 0.440 A
Dimmable/Adjustable Yes
Environmental properties
Energy efficiency label(EEL) C
Mercury content (Hg) 13.0 mg
Energy consumption kWh/1000h 45 kWh
Dimensions in mm.
Lamp length without pins 1199.4 (max) mm
Insertion depth B 1204.1 (min), 1206.5 (max) mm
Total length C 1213.6 (max) mm
Bulb diameter D 28.0 (max) mm
Product data
Order code 727541 40
EOC product code 871150072754140

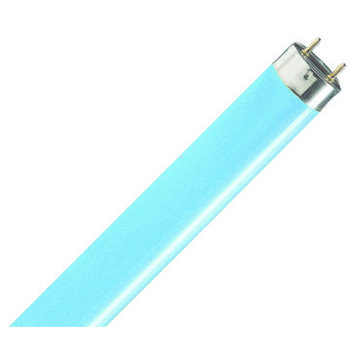

Product name TL-D Colored 36W Blue 1SL
Order product name TL-D Colored 36W Blue 1SL/25
Quantity per package 1
Packing quantity 25
Packs per outer box 25
Barcode on product 8711500727541
Barcode on outer box 8711500727558
Logistic code(s) 928048501805
Net weight per piece 138,400 gr
