- General Characteristics
Cap Base G13 Bulb T26
Main Application Blacklight Blue
Useful Life 12000 hr Life to 50% failures EM 15000 hr
- Light Technical Characteristics
Color Code 108 [08 lead free glass]
Color Designation (text) Blacklight Blue Depreciation 5000 hours 15 % Depreciation 2000 hours 10 %
- Electrical Characteristics
Bulb Wattage 36 W
Bulb Wattage Technical 36 W
Bulb Voltage 103 V
Bulb Current 0.44 A
- Environmental Characteristics
Mercury (Hg) Content 5.0 mg

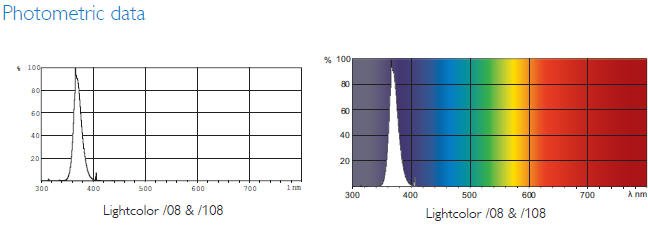

- UV-related Characteristics
UV-A Radiation 100hr (IEC) 9.5 W
UV-B/UV-A (IEC) 0.2 %

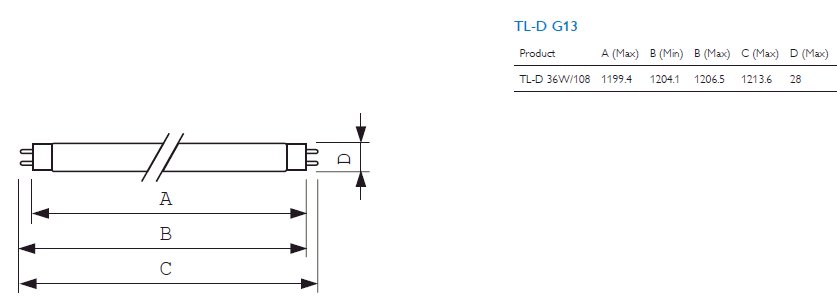

- Product Dimensions
Base Face to Base Face A
1199.4 (max) mm Insertion Length B 1204.1 (min), 1206.5 (max) mm
Overall Length C 1213.6 (max) mm Diameter D 28 (max) mm
- Product Data
Order code 928048510864
Full product code 928048510864

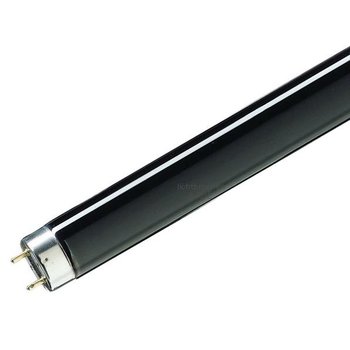

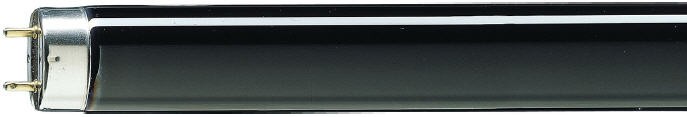

Full product name TL-D 36W BLB 1PP
Order product name TL-D 36W BLB 1PP/10
Pieces per pack 1
Packing configuration 10
Packs per outer box 10
Bar code on pack - EAN1 8711500628947
Bar code on outerbox - EAN3 8711500629173
Logistic code(s) - 12NC 928048510864
Net weight per piece 137,500 gr
