- Dimensions in mm.
Insertion depth B 112.6 (min), 114.2 (nom), 115.8 (max) mm
Total length C 118 (max) mm
Bulb diameter D 12 (max) mm
- Product data
Order code 853896 00
EOC product code 872790085389600

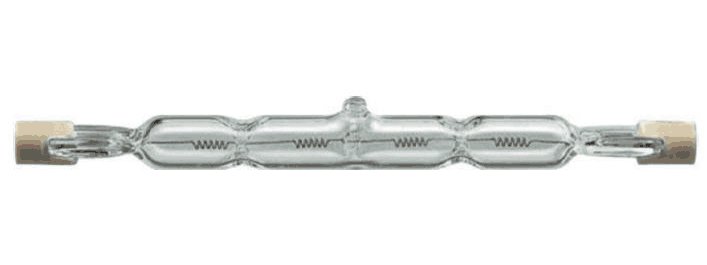

Product name Plusline ES Small 118mm 2y 500W R7s 230V 1BB
Order product name Plusline ES 118mm 2y 500W R7s 230V 1BB
Quantity per package 1
Net weight per piece 9.000 gr
- General characteristics
Lamp base R7s
Bulb Shape T4 [T4: .434 inch/11mm]
Lamp finish Clear
Burning position free [universal]
Lifetime up to 50% failure 2000 hr
Rated live (hours) 2000 hr
Specified live (years) 2 an
- Technical Light Properties
Color rendering 100 Ra8
Color temperature 2900 K
Color temperature technical 2900 K
Luminous flux lamp 9900 Lm
- Electrical characteristics
Nominal lamp power 500 W
Lamp power technically 500.0 W
Voltage 230 V
Dimmable/Adjustable Yes
