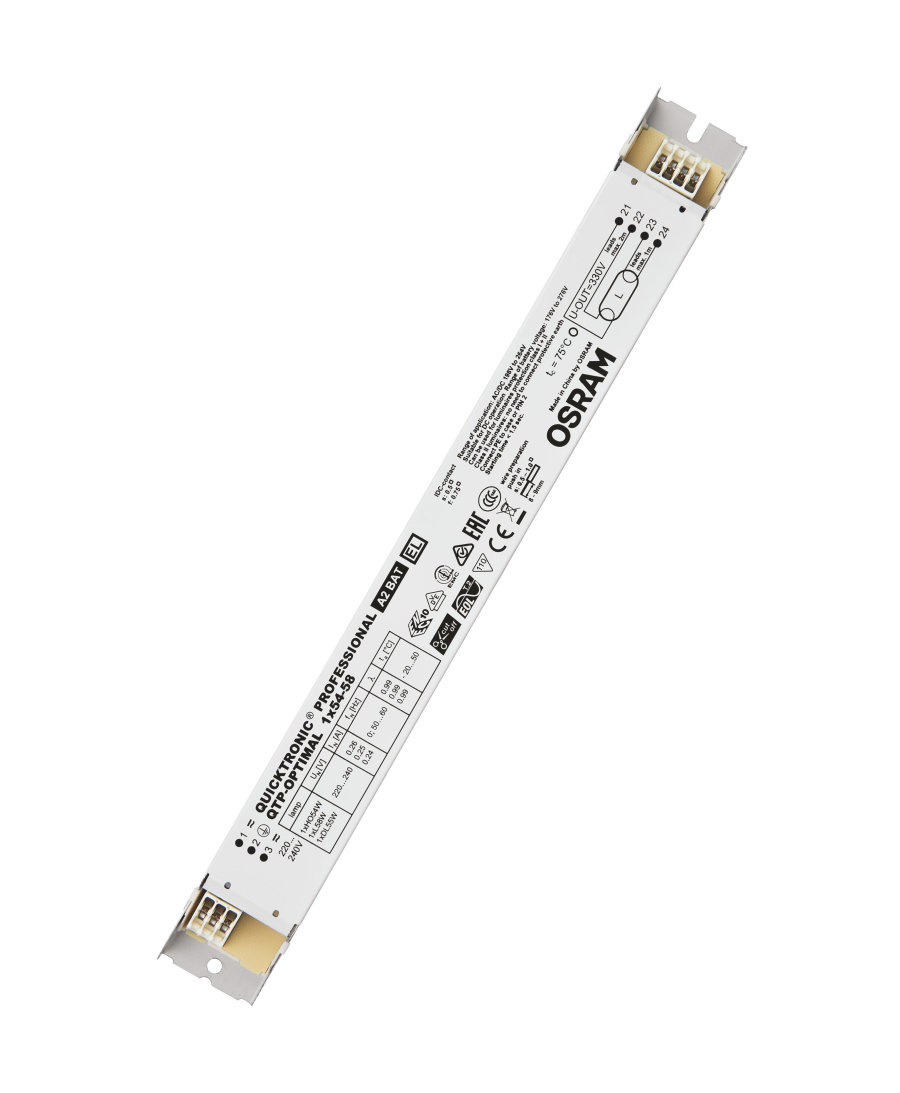

For DULUX L and LUMILUX lamps from 54 to 58W
Electrical data
Input voltage AC 198…264 V
Rated voltage 220…240 V
Mains frequency 50…60 Hz
DC voltage 176…276 V
Operating frequency 40…50 kHz
Maximum number of ECGs on a z 10 A (B) 12
Maximum number of ECGs on a z 16 A (B) 19
Light technical data
Start-up time 1.5 s
Dimensions
Length 280.0 mm
Width 30.0 mm
Height 21.0mm
Mounting hole spacing, length 270.0 mm
Product weight 180.00 g
Temperatures and operating conditions
Ambient temperature range -20…+50 °C
Permissible relative humidity 5…85 %
Lifespan
ECG lifetime
100000 h
Power
Suitable luminaires with safety class I / II
End-of-life safety shutdown EOL T.2
Certificates & standards
Approvals EL / VDE / ENEC 10 / VDE-EMC
EEI – Energy label A2 BAT
Standards Acc. to IEC 61347-2-3 / App. J/According to EN 55015:2006 + A1:2007 + A2:2009/According to IEC 61000-3-2/According to IEC 61547
Safety class I/II
