Article number 0020678

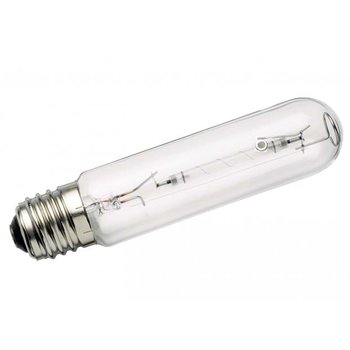

Product name SHP-TS 70W / CL E27 SLV
Technology HID
Power (nominal) (W) 70
Lamp base E27
Balloon finish Clear
Luminaire type (open / closed) Open
General application Logistics & Industry
ETIM class EC000821
E-number FI 4845503
E-number SE 8358012
E-number Norway 3824256
Optical data
Luminous Flux (Nominal) (lm) 6800
Useful luminous flux (nominal (lm) 6800
Ambient temperature for maximum luminous flux (° C) 25
Color temperature (K) 2050
CRI (Ra) 20
Adjustable color quality No.
Nominal lumen maintenance factor at 4,000 hours 50Hz 96
Nominal lumen maintenance factor at 6000 hours 50Hz 94
Nominal lumen maintenance factor at 8000 hours 50Hz 93
Nominal lumen maintenance factor at 12000 hours 50Hz 91
Nominal lumen maintenance factor at 16000 hours 50Hz 90
Nominal lumen maintenance factor at 20000 hours 50Hz 89
Electrical data
Wattage (W) 70
Current (A) 0.98
Voltage (V) 90
Ballast required Yes
Transformer required No.
Lamp energy label (class) A +
kWh per 1000 burning hours 77
Lifetime data
Average life (nominal) (h) 30000
Average life (nominal) (hours) 30000
Lifespan T90 16000
Nominal survival factor at 2000 hours 50Hz 100
Nominal survival factor at 4000 hours 50Hz 100
Nominal survival factor at 6000 hours 50Hz 99
Nominal survival factor at 8000 hours 50Hz 99
Nominal survival factor at 12000 hours 50Hz 96
Nominal survival factor at 16000 hours 50Hz 90
Nominal survival factor at 20000 hours 50Hz 81
Physical data
Max. lamp diameter (mm) -D 39
Weight (kg) 0.053
Packaging
Single pack type Carton
EAN code 5410288206783
Single length packaging (cm) 20.0
Single pack width (cm) 4.2
Unit packaging height (cm) 4.2
DUN14 (outer) 15410288206780
Units per master carton 12
Outer box length (cm) 20.5
Outer box width (cm) 14.5
Carton depth (cm) 18.0
Security data
Lamp mercury content (mg) 10.80
Cleaning instructions in case of breakage Applicable
End-of-life disposal recommendation Applicable
Lamp for special applications No.
Intended use General lighting
Suitable for household lighting No.
