Length:
Diameter:

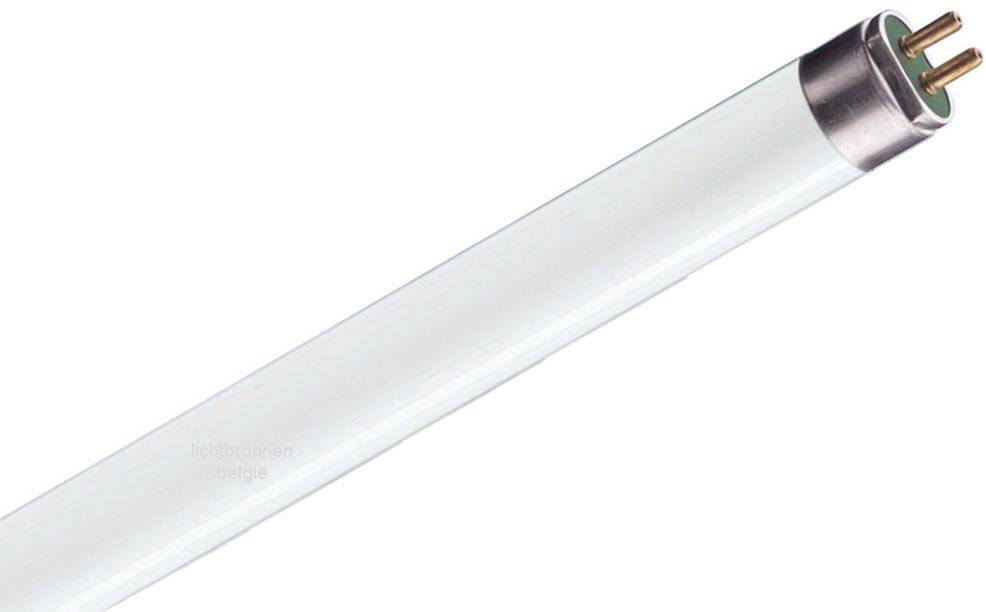

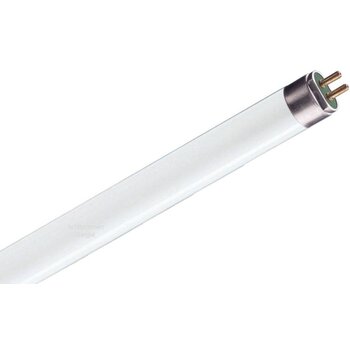

Product name Ecoline Fho35w/T5/840
Technology Fluorescence
Balloon Shape Tubular
Lamp base G5
Balloon finish Satin/matte
Fixture type (open/closed) Open
General Application Education, Hospitality, Logistics & Industry, Museums & Galleries, Office, Retail, Residential & Consumer
ETIM class EC000108
E-number FI 4940262
E-number Norway 3801072
Luminous flux 3230
Luminous flux (nominal) (lm) 3250
Efficiency (nominal (lm/w) 94
Color Temperature (K) 4000
Light color Cool white
Color code 840
CRI (Ra) 85
Initial Color Variation (SDCM) SDCM5
Power consumption (W) 35
Wattage (W) 35.00
Dimmable Yes
Average life (nominal) (h) 24000
EAN code 5410288029177
Luminous flux 3230
Luminous flux (nominal) (lm) 3250
Useful luminous flux (nominal (lm) 3250
Nominal luminous flux (nominal) at 35°C (lm) 3500
Efficiency (nominal (lm/w) 94
Ambient temperature for maximum luminous flux (°C) 35
Color Temperature (K) 4000
Light color Cool white
Color code 840
CRI (Ra) 85
Initial Color Variation (SDCM) SDCM5
Adjustable color quality No
Nominal lumen maintenance factor at 2000 hours 50Hz 0.97
Nominal lumen maintenance factor at 4000 hours 50Hz 0.95
Nominal lumen maintenance factor at 6000 hours 50Hz 0.93
Nominal lumen maintenance factor at 8000 hours 50Hz 0.92
Nominal lumen maintenance factor at 12000 hours 50Hz 0.91
Nominal lumen maintenance factor at 16000 hours 50Hz 0.90
Nominal lumen maintenance factor at 20000 hours 50Hz 0.88
Electrical data
Power consumption (W) 35
Wattage (W) 35.00
Equivalent power 35
Current (A) 0.340
Primary supply voltage min 90.0
Primary supply voltage max 110.0
Ballast required Yes
Dimmable Yes
Driver current (mA) 340
Lamp energy label (class) F
kWh per 1000 burning hours 39
Lifespan data
Average life (nominal) (h) 24000
Average life (nominal) (hours) 24000
Nominal survival factor at 2000 hours 50Hz 0.99
Nominal survival factor at 4000 hours 50Hz 0.98
Nominal survival factor at 6000 hours 50Hz 0.96
Nominal survival factor at 8000 hours 50Hz 0.94
Nominal survival factor at 12000 hours 50Hz 0.93
Nominal survival factor at 16000 hours 50Hz 0.90
Nominal survival factor at 20000 hours 50Hz 0.84
Physical data
Length (mm) 850.0
Nominal product diameter (mm) 16
Foot to foot length (mm) - A 849.0
Foot to Pin Length Min-Max - B 853.7-856.1
Max. lamp length (mm) C/L 863.2
Max. lamp diameter (mm) -D 17.0
Weight (kg) 0.064
Packaging
EAN code 5410288029177
Single length packaging (cm) 86.2
Single width packaging (cm) 1.9
Height unit package (cm) 1.9
DUN14 (inner) 15410288029174
Units per carton 25
Length of outer box (cm) 87.6
Width of outer box (cm) 10.5
Depth of outer box (cm) 10.5
Safety data
Lamp mercury content (mg) 2.30
Cleaning instructions in case of breakage Applicable
End of life disposal recommendation Applicable
Lamp for special applications No
Suitable for household lighting Yes
