Elektrische kenmerken
Netspanning 220-240 V [220 to 240 V]
Netfrequentie 50-60 Hz [50 to 60 Hz]
Mechanische eigenschappen
Materiaal behuizing ASA [Acrylonitile-styrene-acrylate]
Reflectormateriaal PC [Polycarbonate]
Materiaal lichtkap/ lens
PC [Polycarbonate]
Initial perform. (IEC compliant)
Systeemvermogen 9 W [9 W]
Initiële lichtstroom 668 Lm
Initiële efficacy LED armatuur 72 Lm/W
Kleurtemperatuur lamp 3000 [3000 K]
Init. Kleurweergaveindex >80 [>80]
Over time perform. (IEC compliant)
Levensduur L80B10 60000 hr
Application conditions
Omgevingstemperatuur -20 to +35°C [-20 to +35 °C]
Algemene informatie
Productfamiliecode BWC110 [BWC110]
Aantal lampen 1 [1 pc]
Lamptype LED9 [LED module 900 lm]
Lampkleur 830 [830 warmwit]
Transformator PSU [Power supply unit]
Driver meegeleverd Ja [Ja]
Veiligheidsklasse II [Safety class II]
Beschermingsgraad (IP) IP54 [Dust accumulation-protected, splash-proof]
IK-code IK08 [5 J vandal-protected]
Kleur WH [White]
Dimbaar Nee [Nee]
Fotocel PH [Fotocel meegeleverd]
Verbinding SI [Schroefaansluitblok]
Gloeidraadtest 650/5 [Temperature 650 °C,duration 5 s]
European Community-markering
CE [CE mark]
ENEC-markering ENEC [ENEC mark]
Product data
Bestelcode 851905 99
EOC productcode 871829185190599

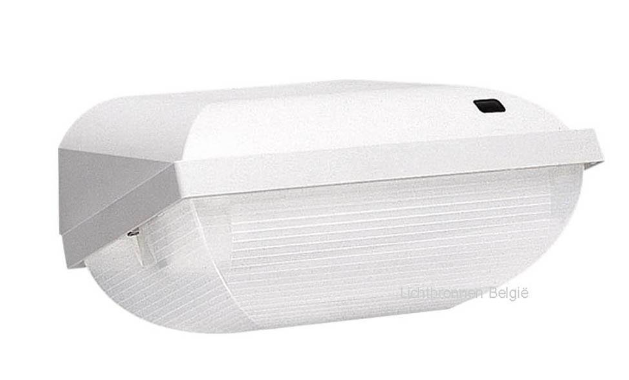

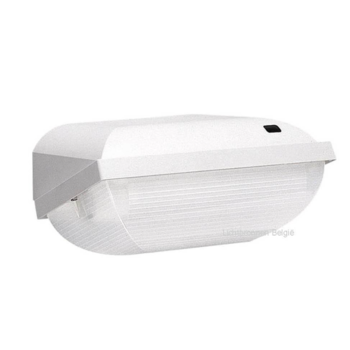

Productnaam BWC110 LED9-/830 PSU II WH PH
Bestel productnaam BWC110 LED9-/830 PSU II WH PH
Barcode op product 8718291851905
Barcode op buitendoos 8718291851981
Logistieke code(s) 910500454098
