Algemene informatie
Productfamiliecode BWC120 [BWC120]
Aantal lampen 1 [1 pc]
Lamptype LED18 [LED-module 1800 lm]
Lampkleur 830 [830 warmwit]
Lichtbron vervangbaar Ja [Ja]
Transformator PSU [Power supply unit]
Driver meegeleverd Ja [Ja]
Veiligheidsklasse II [Safety class II]
Beschermingsgraad (IP) IP54 [Dust accumulation-protected, splash-proof]
IK-code IK08 [5 J vandal-protected]
Kleur WH [White]
Dimbaar Nee [Nee]
Fotocel PH [Fotocel meegeleverd]
Verbinding SI [Schroefaansluitblok]
Gloeidraadtest 650/5 [Temperature 650 °C, duration 5 s]
European Community-markering CE [CE mark]
ENEC-markering ENEC [ENEC mark]
Elektrische kenmerken Netspanning 220-240 V [220 to 240 V]
Netfrequentie 50-60 Hz [50 to 60 Hz]
Mechanische eigenschappen Materiaal behuizing
ASA [Acrylonitile-styrene-acrylate]
Reflectormateriaal PC [Polycarbonate]
Materiaal lichtkap/lens PC [Polycarbonate]
Initial perform. (IEC compliant)
Systeemvermogen 17 W [17 W]
Kleurtemperatuur lamp 3000 [3000 K]
Init. Kleurweergave-index >80 [>80]
Over time perform. (IEC compliant)
Levensduur L80B10 60000 hr
Application conditions
Omgevingstemperatuur -20 to +35°C [-20 to +35 °C]
Product data
Bestelcode 851943 99
EOC productcode 871829185194399
Código Local

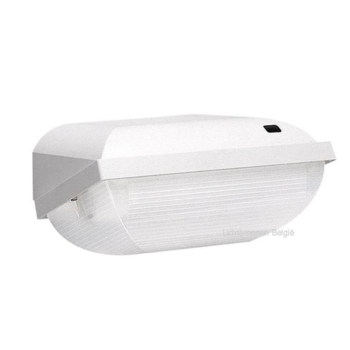

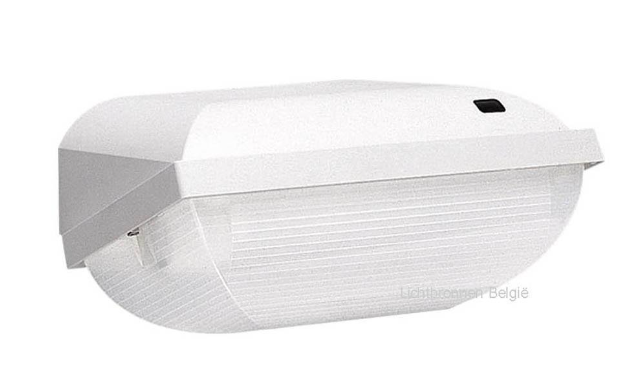

Productnaam BWC120 LED18-/830 PSU II WH PH
Bestel productnaam BWC120 LED18-/830 PSU II WH PH
Aantal per verpakking 1
Verpakkingen per buitendoos 4
Barcode op product 8718291851943
Barcode op buitendoos 8718291852025
Logistieke code(s) 910500454103
Netto gewicht per stuk 0.850 kg
